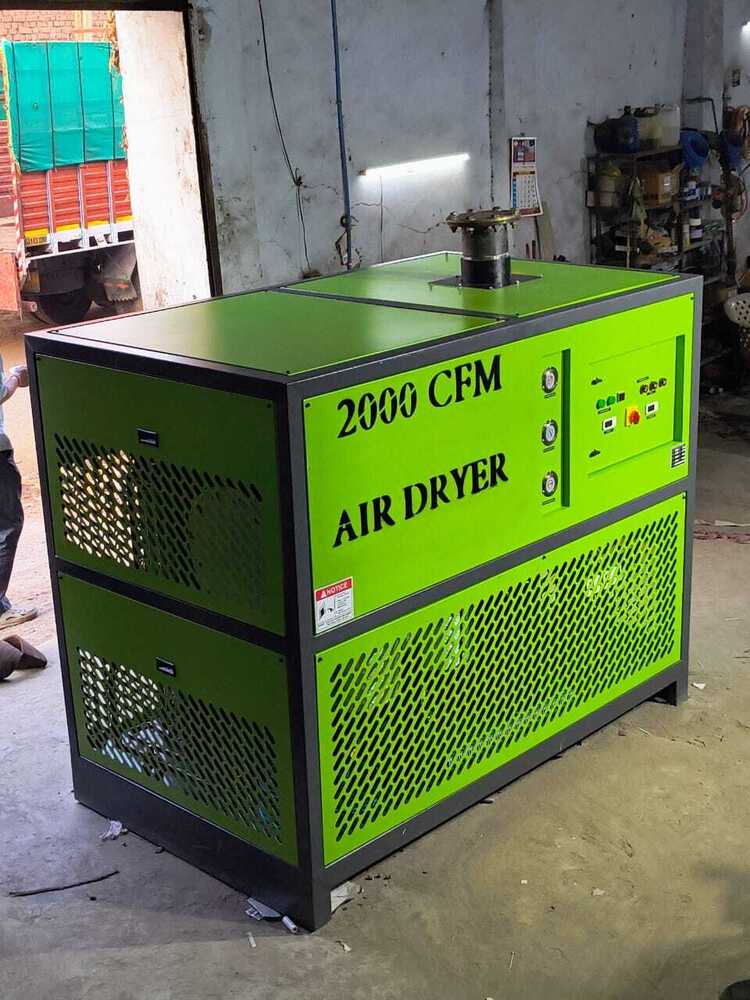

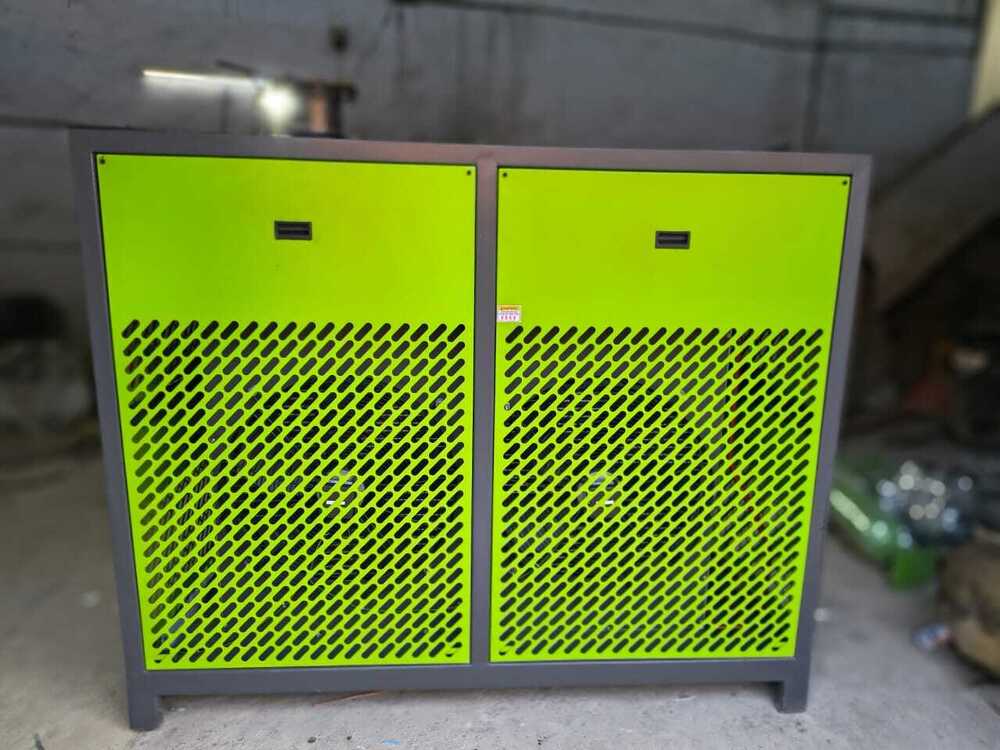

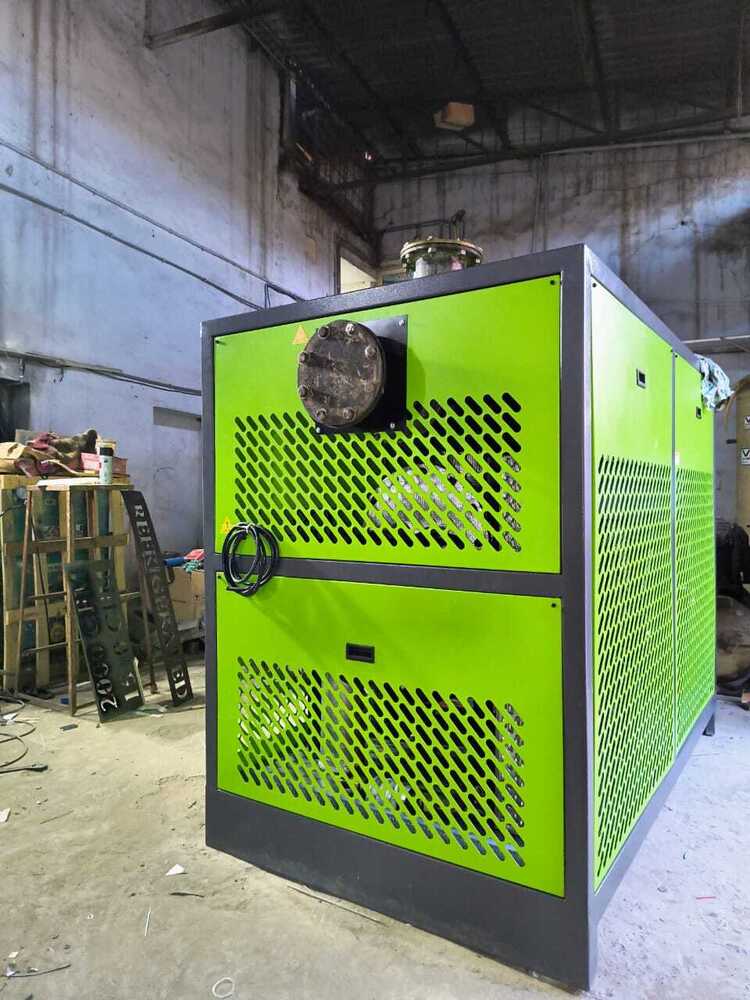

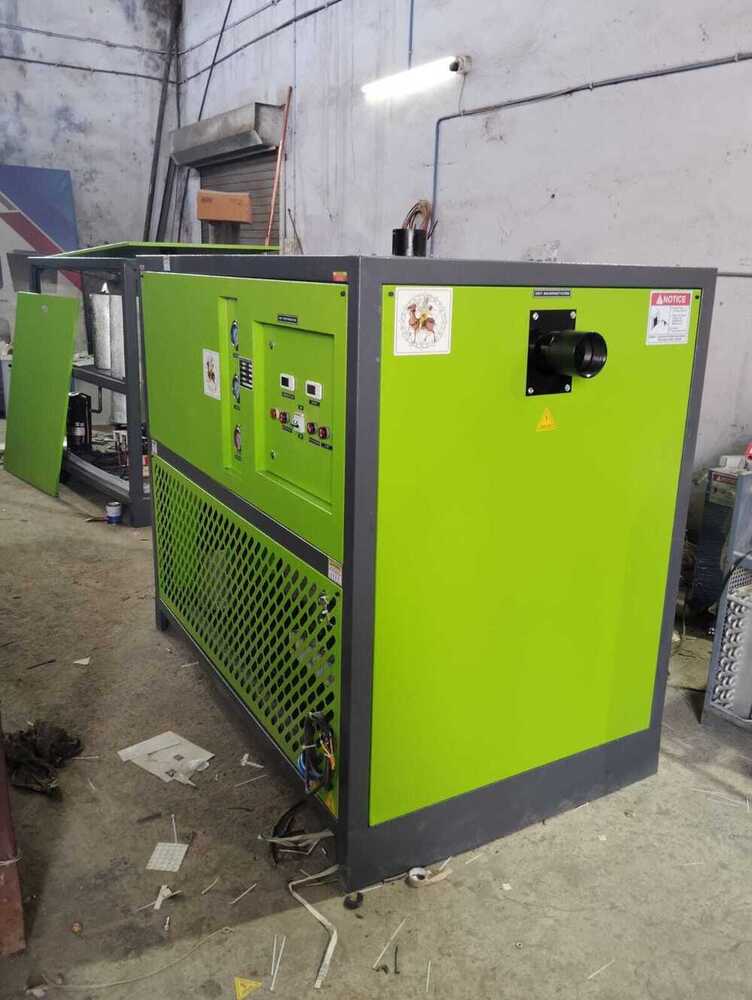

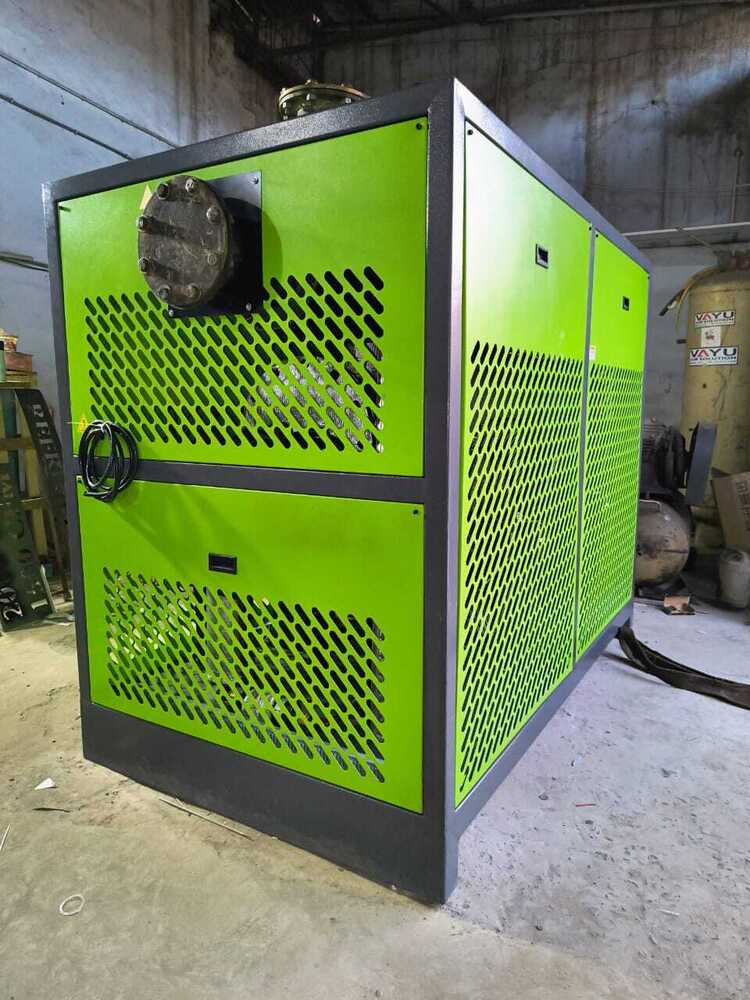

2000CFM REF. AIR DRYER

Name: 2000CFM REF. AIR DRYER
Brand: VAYU AIR SOLUTION
Price: 750000 INR
Availability: InStock

Price 750000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

2000CFM REF. AIR DRYER Specification

Power Output
High Efficiency Kilowatt (kW)

Temperature
2°C to 8°C Dew Point Celsius (oC)

Dimension (L*W*H)
1780 x 900 x 1570 mm Millimeter (mm)

Pressure
7 to 12 kg/cm²g kgf/cm2

Inlet Oil Content
< 0.01 ppm

Power Input
3-Phase Horsepower (HP)

Fan Capacity
Industrial Grade

Drive
Direct

Air Flow
2000 CFM (Cubic Feet per Minute) ft3/min (CFM)

Noise Level
< 72 dB(A) db

Place of Origin
India

Inlet Temperature
< 45°C Celsius (oC)

Power Consumption
3.8 kW Kilowatt (kW)

Power Source
Electric

Lubrication Type
Oil-Free

Voltage
415V AC Volt (v)

Warranty Type
Onsite Service Support

Installation Type
Floor Mounted

Cooling Method
Air Cooled

Control Panel
Microprocessor Based

Phase
Three Phase

Drain Type
Automatic Timer Drain

Color
Blue/Grey

Material of Construction
Mild Steel with Powder Coating

Weight
Approx. 590 kg

Connection Size
3 Inch Flanged

Compressor Type
Hermetically Sealed Rotary

Frequency
50 Hz

Safety Features
High/Low Pressure Cutoff, Overload Protection

Max Ambient Temperature
50C

Application
Compressed Air Drying

Refrigerant Type
R-407C

About 2000CFM REF. AIR DRYER

"The 2000 CFM refrigerated air dryer is designed to deliver clean, dry compressed air by reducing moisture through efficient cooling.
It operates at a rated capacity of 2000 CFM at 100 psig with a consistent pressure dew point of +3C.
The system is equipped with an energy-efficient refrigeration circuit and an air-cooled condenser.
A compact, skid-mounted design with integrated pre- and after-filters ensures easy installation and reliable operation.
Ideal for industrial applications requiring continuous, dry, and high-quality compressed air supply."

Advanced Refrigeration Technology

Utilizing R-407C refrigerant and a hermetically sealed rotary compressor, the dryer maintains a stable dew point between 2C to 8C, ensuring efficient moisture removal from compressed air. The design incorporates oil-free operation and an automatic timer drain for reduced maintenance needs. Its air-cooled mechanism is optimized for ambient temperatures up to 50C.

User-Friendly and Durable Construction

Manufactured from powder-coated mild steel, the unit is both durable and corrosion-resistant. The microprocessor-based control panel offers easy operation and advanced diagnostic capabilities. The blue/grey finish is both modern and practical, and the compact, floor-mounted configuration ensures stability in industrial settings.

Reliable Performance for Industrial Applications

With a high air flow capacity of 2000 CFM and a pressure range of 7 to 12 kg/cmg, this air dryer suits a variety of heavy-duty compressed air applications. Safety features like high/low pressure cutoff and overload protection provide dependable operation, while onsite service support ensures minimized downtime.

FAQs of 2000CFM REF. AIR DRYER:

Q: How does the 2000CFM Refrigerated Air Dryer operate to remove moisture from compressed air?

A: The dryer uses an air-cooled refrigeration system with R-407C refrigerant and a hermetically sealed rotary compressor to cool incoming compressed air. Moisture condenses as the temperature drops to the 2C8C dew point range before being expelled via the automatic timer drain, ensuring consistently dry air output.

Q: What are the benefits of the microprocessor-based control panel featured on this dryer?

A: The microprocessor-based control panel streamlines operation, provides real-time monitoring, and issues alerts for maintenance or faults. This helps prevent costly downtime, enhances safety, and allows precise adjustment of key parameters for optimal dryer performance.

Q: Where can this air dryer be installed, and what are the installation requirements?

A: This model is designed for floor-mounted installation in industrial settings. It requires a three-phase 415V AC power supply and should be placed in a well-ventilated area with an ambient temperature below 50C. The 3-inch flanged connection makes it compatible with standard piping in compressed air systems.

Q: When should the automatic timer drain be serviced or checked?

A: Regular inspection of the automatic timer drain is advised during periodic maintenance to ensure it is not blocked and is functioning correctly. This prevents moisture buildup which can affect dryer efficiency. The frequency of checks may depend on air quality and system usage.

Q: What safety features are included in this air dryers design?

A: The unit is equipped with high and low pressure cutoffs, overload protection, and a microprocessor control system which continually monitors operational safety. These safeguards protect the compressor and other components from damage due to abnormal operating conditions.

Q: How does using this air dryer benefit industrial compressed air systems?

A: By ensuring removal of moisture and oil content to below 0.01 ppm, the dryer protects downstream equipment from corrosion and contamination, improving the efficiency, longevity, and reliability of pneumatic machinery and processes.
